Particulars
Vessel Name

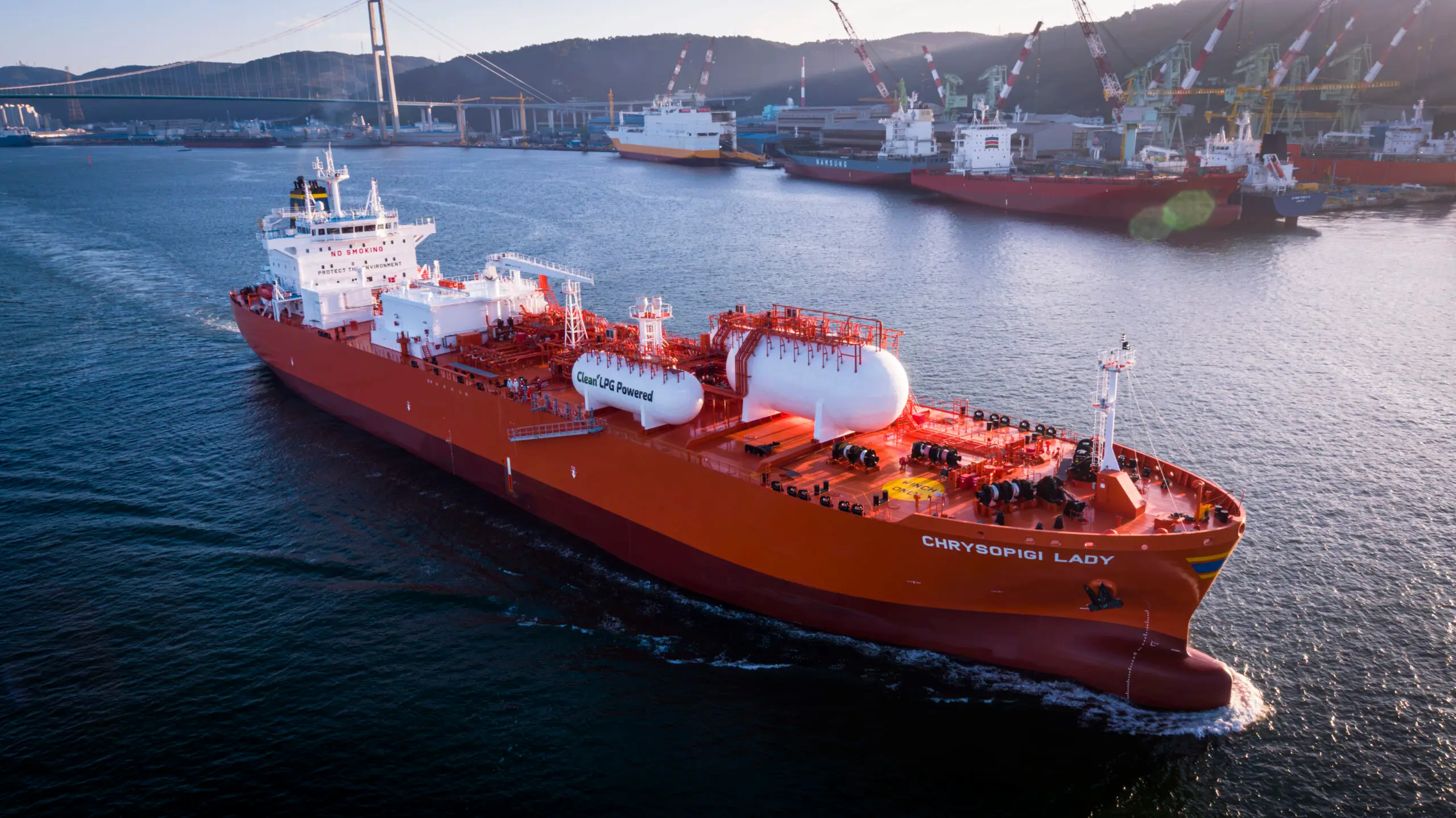

Chrysopigi Lady
IMO no.
9936537
Flag/class
Singapore/LLOYDS
Ship Type/ Yard Delivery
LPG/Hyundai Mipo Dockyard Co Ltd
LOA x Breadth x Depth
179.86 Metres x 28.70 Metres x 18.70 Metres
Keel to Mast Height
46.58 Metres
Summer Dwt
29,703 Metric Tonnes
GRT/NRT
26,709/ 8,012
Major Machinery
Main Engine
HYUNDAI - MAN B&W 6G50ME-C9.6-LGIP-HPSCR
Generators
3 x HYUNDAI HIMSEN 6H21/32
Boiler
Kangrim
Cargo/Ballast Pumps
Cargo Pumps: Deepwell @ head 130Meter Liquid Column 400Cu.Meters/Hour x 2; Ballast Pumps: Centrifugal 400 Cu. Metres/Hour X 2
Cargo Tank Capacity (98%)
39607.39 m3
Ballast Tank Capacity (100%)
13665.50 m3
